pulling the plug on this diff disassmble. Going to use the diff Z gave me and start cleaning it out tonight. Will work with someone on getting a crush sleeve eliminator built.
Nice you'll be able to say that a part of your car has been 7's in the quarter.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,842
Nice you'll be able to say that a part of your car has been 7's in the quarter.
The fastest part of my car 😂



catdad

Active Member
Founding Member
10 Second Best E/T
Member ID
#869
Messages
124
Reactions
175
Likes
37
City
Lake City
State
FL
Country
United States
Vehicle
2019 Charger Hellcat
if your units are complete assembled diffs you will not be checking pinion brg preload. your checking how much it takes to rotate the whole diff. carrier included.
Diffs are apart as I was checking clutch packs.



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
I think that means a piece of my car will finally go 7s 😅



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,845

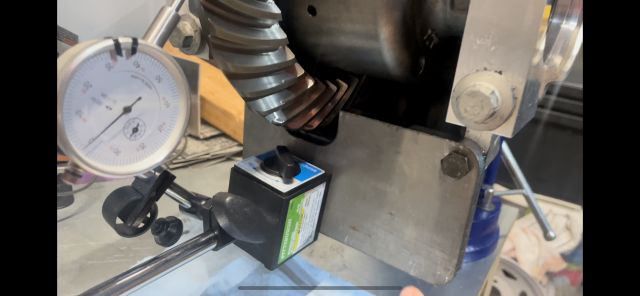

Diffapalooza 2.0 these instructions are for differentials that aren’t blown up and pinion doesnt need to be cleaned.

Step 1: Remove cover, 16mm and 12mm bolts.
Step 2: Inspect cover clean
Step 3: Install TBA machine bottom plate and carrier caps. The carrier caps are torqued to 120ft/lbs. Reference: Install the bearing caps and torque them to 120ft/lbs and check the back lash on the ring gear. It should be between .003-.005”. Brand new housings from Dodge are right at .004”.

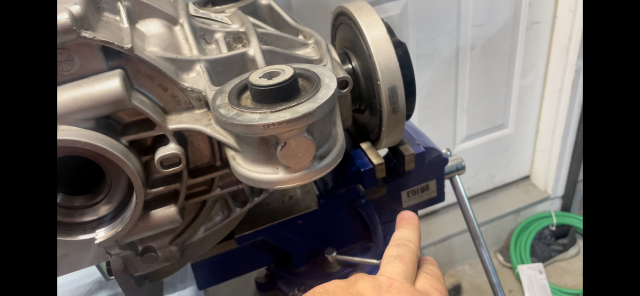

Step 4: lock pinion flange in vice

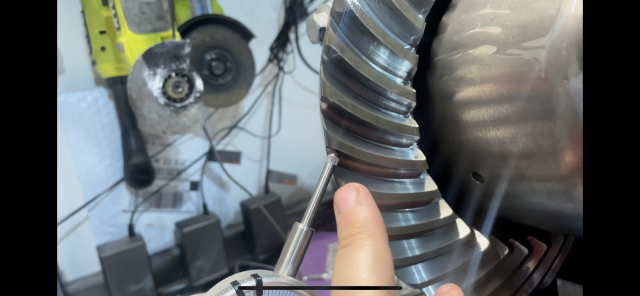

Step 5: ensure that dial indicator is not contacting other teet

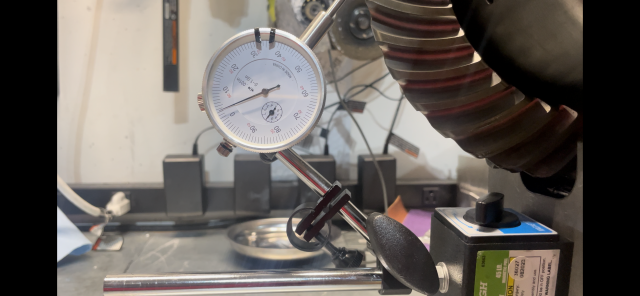

Step 6: move ring gear slightly and measure movement
Seems this diff averages around .004. This is not rocket science but its close. No stores had marking compound so Ill do that tomorrow after a visit to Napa. Start disassembly and cleaning. Maybe even get the ring gear off. @zhc you ready to show the world what clutches from 7s passes look like?



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
@fumanchu182 spilling the secret sauce. Amazing info, thanks for sharing. 309 good karma points



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,847
I had to remeasure backlash. Glad I did.




16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,467
Reactions
8,209
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
Was going to say your indicator needed to be perpendicular to a tooth profile but you got it 👍🏻👍
Carry on soldier



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,467
Reactions
8,209
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
Now for pinion depth??



oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
699
Reactions
1,780
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
Now for pinion depth??
pinion depth is the first thing you set with the carrier removed, which is the position of the pinion in the housing an how deep into the ring gear. then back lash then final is carrier side brg. pre load with the shims.
checking pinion depth is when you use the paste to see where the teeth line up with each other.



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,467
Reactions
8,209
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
pinion depth is the first thing you set with the carrier removed, which is the position of the pinion in the housing an how deep into the ring gear. then back lash then final is carrier side brg. pre load with the shims.
checking pinion depth is when you use the paste to see where the teeth line up with each other.
Yes, correct. In Fumans post above he mentions getting hard marking compound, I’m assuming that’s what he’s looking for to do such with. I’m curious of what he finds, stock carrier verses replaced carrier with same gear on it.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,852
pinion depth is the first thing you set with the carrier removed, which is the position of the pinion in the housing an how deep into the ring gear. then back lash then final is carrier side brg. pre load with the shims.
checking pinion depth is when you use the paste to see where the teeth line up with each other.
Yes, correct. In Fumans post above he mentions getting hard marking compound, I’m assuming that’s what he’s looking for to do such with. I’m curious of what he finds, stock carrier verses replaced carrier with same gear on it.
I will not be removing the pinion on this, clean out and build. I need the marking compound to ensure that the current backlash is meshing right and also a photo to ensure that when I put it back together and check again I’m close. I did a prototype crush sleeve eliminator but my crushed sleeve + shims may not be right for everyone.



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,467
Reactions
8,209
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
I will not be removing the pinion on this, clean out and build. I need the marking compound to ensure that the current backlash is meshing right and also a photo to ensure that when I put it back together and check again I’m close. I did a prototype crush sleeve eliminator but my crushed sleeve + shims may not be right for everyone.
Kind of figured that was your plan



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,854

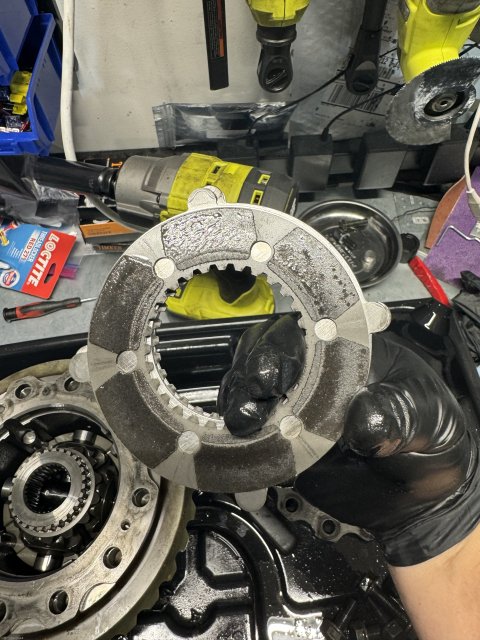

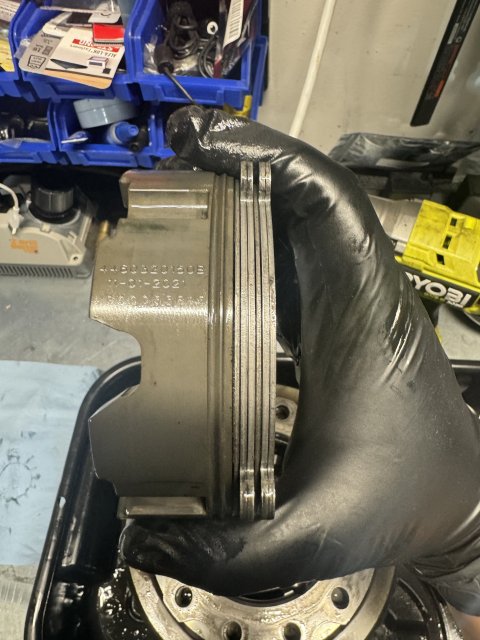

@zhc has a factory freak. Immaculate clutches and steels.

IMG_0329.jpeg IMG_0328.jpeg

To remove the ring gear no heat is required.



zhc

Active Member
Founding Member
7 Second Best E/T
Member ID
#1019
Messages
391
Reactions
1,357
Likes
117
City
Houston
State
TX
Country
United States
Vehicle
2016 Dodge Charger Hellcat
@zhc has a factory freak. Immaculate clutches and steels.
Smooth controlled burn outs with both wheels spinning is the key.

Those clutches burn up real quick when only one wheel spins and you don’t realize it.

One way you can tell you’re only spinning one wheel is your speedometer will be reading much lower, like half or less than expected for the rpm and gear that you’re in



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,856

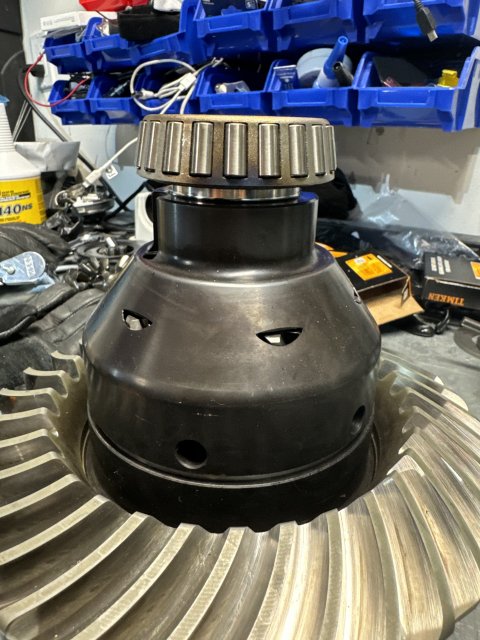

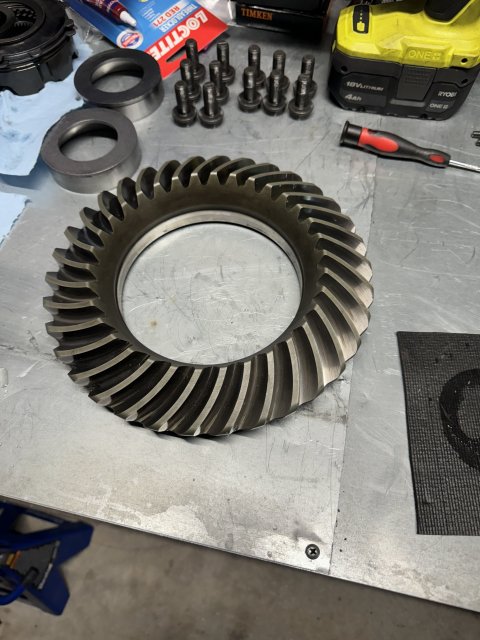

300*F in an oven for an hour, slid right on.
300* in an oven, stopped half way, pissed me the fuck off.

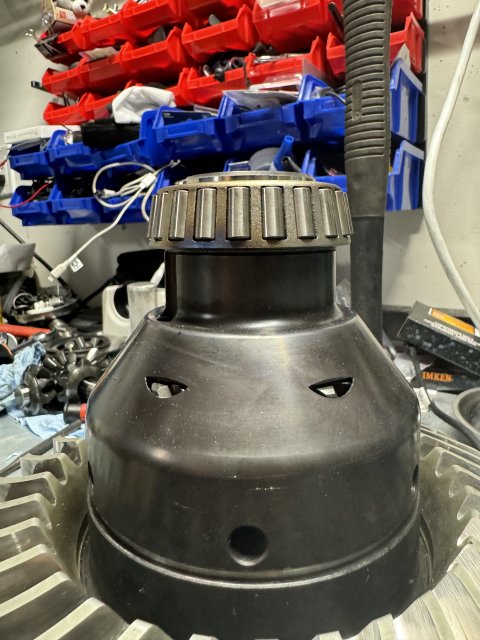

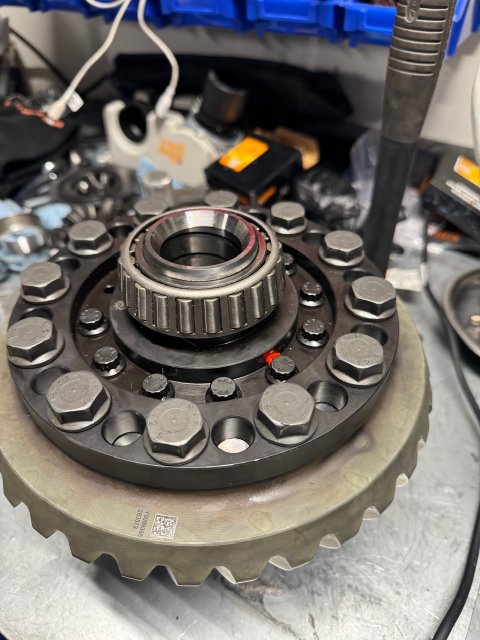

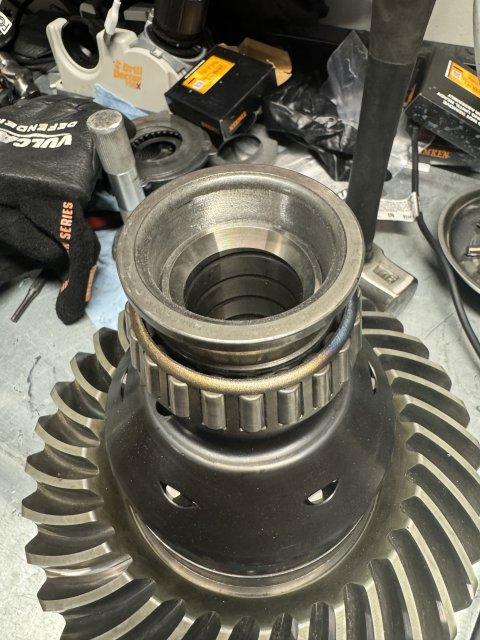

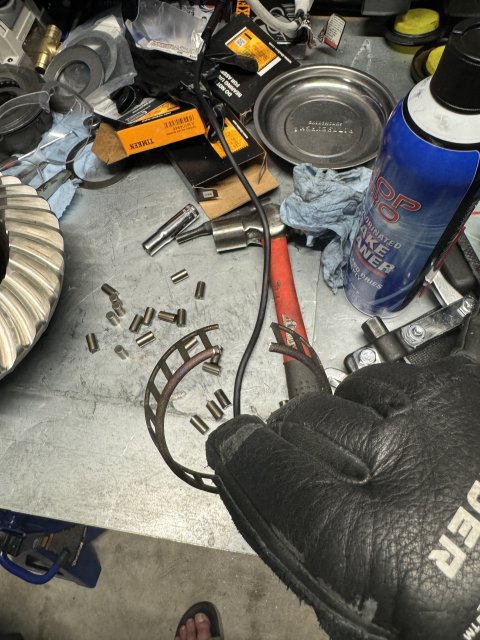

improvised and cut an old bearing open, ground out some of the interior and used mechanical persuasion
