Man, she looks pretty used-up :oops:



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,802



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,787
Reactions
5,610
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,804

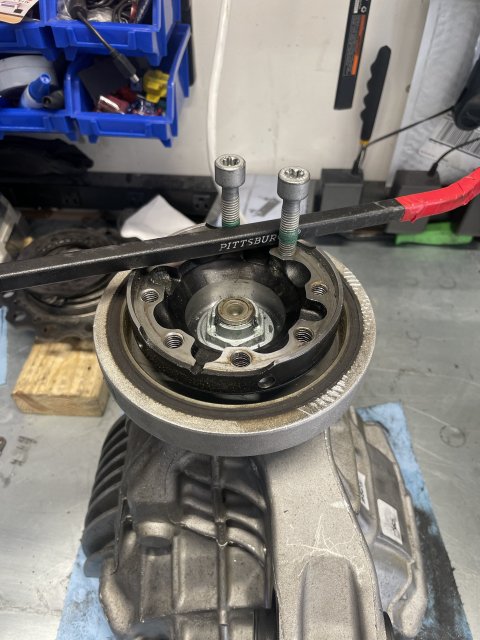

old diff bolts and a pry bar, 32mm impact socket and ugga duggas. IMG_8909.jpeg
Smack with really large punch and 5lb dead blow IMG_8910.jpeg

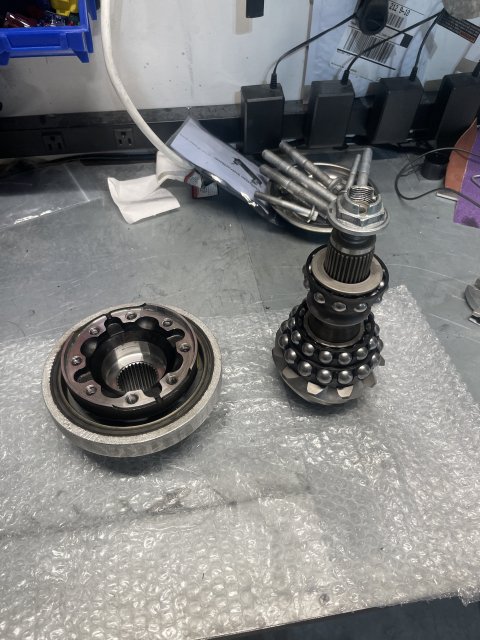

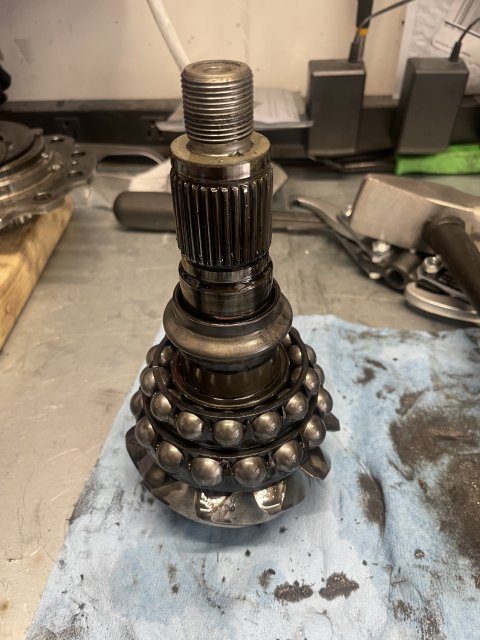

Pinion is out IMG_8912.jpeg

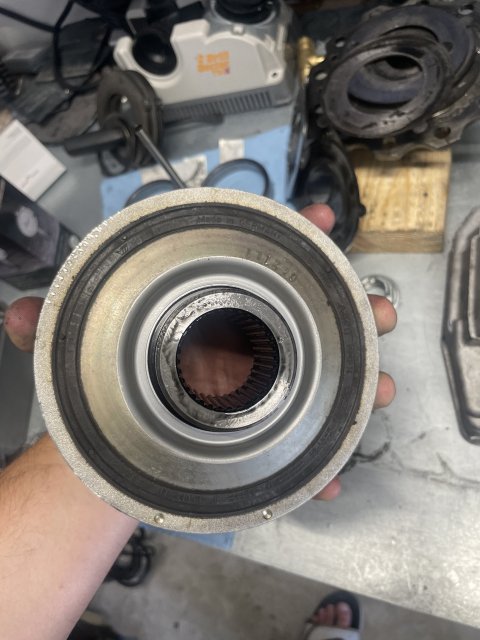

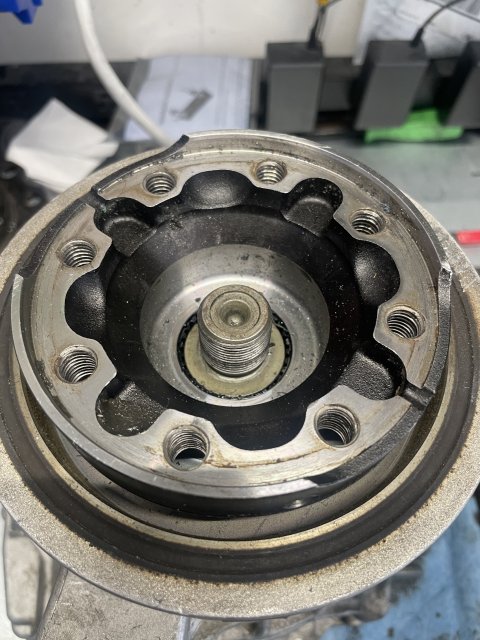

Flange is on top of that seal IMG_8913.jpeg
Dirty hoe, simple green and brake clean, high af after 71657589531__9F9D5E94-3863-4C5A-BEE4-2D91D1FDD5D9.jpeg

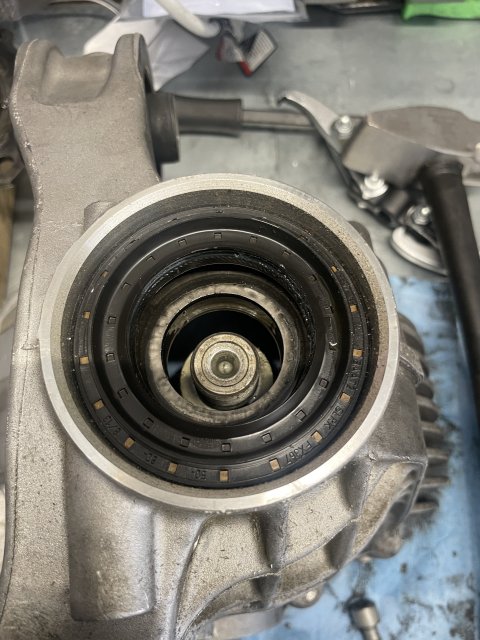

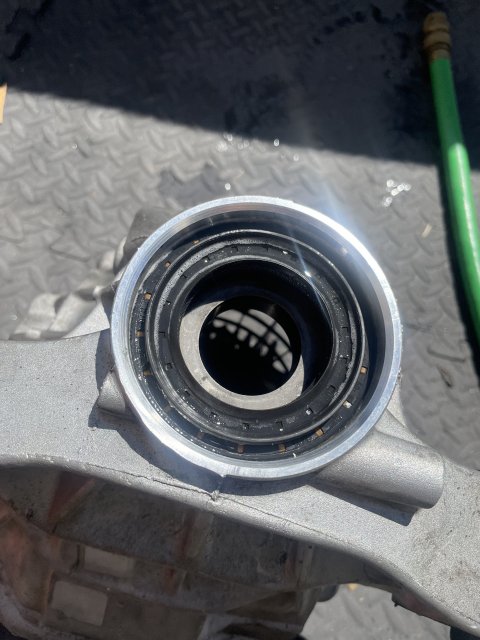

Under the seal is a bearing IMG_8926.jpeg

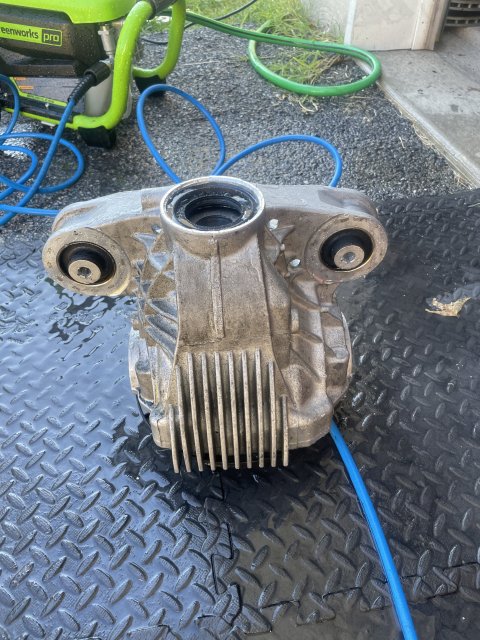

Pressure wash to clean it all out IMG_8930.jpeg

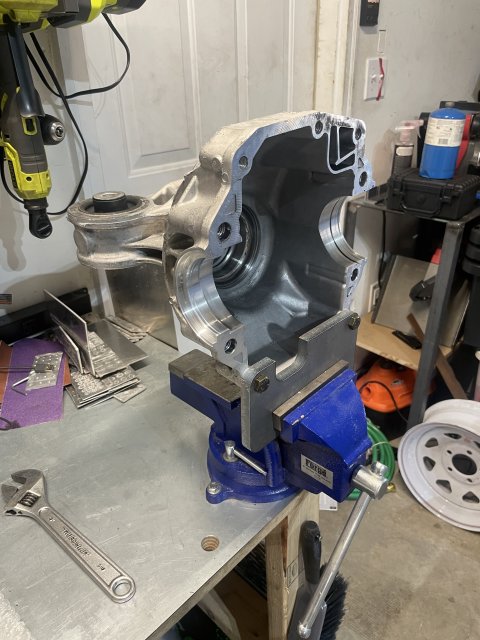

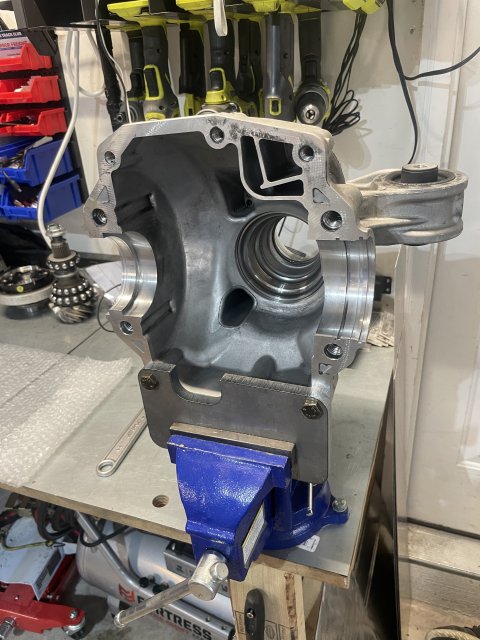

In the kit comes a setup plate, bolts sourced out of the fuck it bucket IMG_8931.jpeg
She clean… IMG_8932.jpeg
caution: do not use brake clean on the pinion flange, pressed rubber bushings you cannot replace, pinion was inspected, all bearings good, all machined surfaces good. IMG_8935.jpeg
Back of diff where one bearing sits in the races IMG_8936.jpeg
Pinion gears are sharp, need to pull the ring gear but thats a tomorrow me problem, time to go get beer



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,467
Reactions
8,209
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
Thats a hell of a beefy bearing arrangement there on that pinion assy!!!



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,806
Thats a hell of a beefy bearing arrangement there on that pinion assy!!!
It is, pain the balls to clean. However they spin freely now, was having an issue where it was binding before cleaning, think there was a ton metal in there. There are no specs on ZF diffs so its going to be trial and error to get backlash correct. I have numbers from dusterhoff and will confirm on assembly. Need to pickup seals on Monday.



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,787
Reactions
5,610
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thats a hell of a beefy bearing arrangement there on that pinion assy!!!
Okay now I see why there’s no aftermarket dang



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,787
Reactions
5,610
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
This is some of the most beneficial info I have seen on the forum. Following this closely, great job @fumanchu182



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,787
Reactions
5,610
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Good to see you can disassemble the pinion and install it theoretically in any case. Thinking I should have kept my 3.70 as a spare



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,810
Good to see you can disassemble the pinion and install it theoretically in any case. Thinking I should have kept my 3.70 as a spare
The ring and pinion would be different



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,787
Reactions
5,610
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
The ring and pinion would be different
Right, but if a case went bad you could swap them into a new case if you crack one or whatever. I was under the impression (and thought I had heard) the pinion wasn’t removable



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,812
I wouldn't even dare try to remove that pinion from the shaft. It is hard pressed on there and would be a hell of an effort. But yes you are correct, cases are swappable. I have my LLC being processed by ZF to see if I can get FSM and repair specs.

Right, but if a case went bad you could swap them into a new case if you crack one or whatever. I was under the impression (and thought I had heard) the pinion wasn’t removable



drag racer

1000 Posts Club
Founding Member
Premium Account
Member ID
#1047
Messages
1,335
Reactions
3,410
Likes
162
City
PEORIA
State
AZ
Country
United States
Vehicle
'16 Challenger HC, '19 Durango SRT, '22 Charger SP
Great stuff! LMAO at the "fuckit bucket" quip. Yea, ZF seems totalitarian on control of parts and service data - pisses me off! Hopefully, they will wake up and realize with millions of Chargers and Challengers built, there will be a healthy aftermarket demand for diff and transmission parts for a long time.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,814
Great stuff! LMAO at the "fuckit bucket" quip. Yea, ZF seems totalitarian on control of parts and service data - pisses me off! Hopefully, they will wake up and realize with millions of Chargers and Challengers built, there will be a healthy aftermarket demand for diff and transmission parts for a long time.

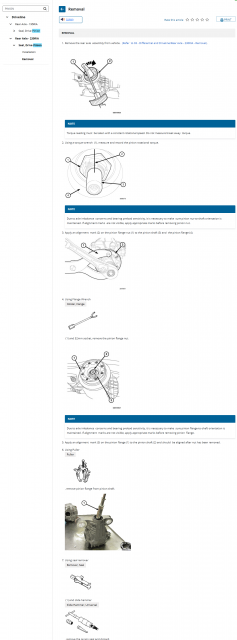

So I did find this documentation on the pinion flange removal and installation to repair the seal. This helps me with re-assembling that, however I didn't mark any orientation as I was cleaning out metal so that was more of a priority. I wonder if imbalance will occur. However if you install this into a billet housing there's no way to keep track of that so, by reasoning maybe its a herring???

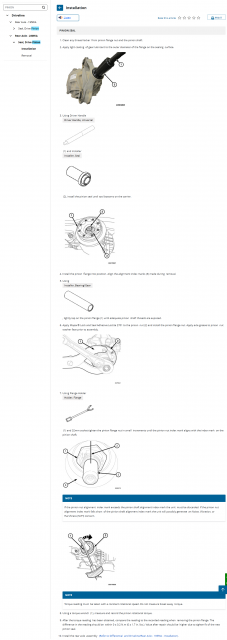

this is for re-assembly
My mind boggles at this:
"If the pinion nut alignment index mark exceeds the pinion shaft alignment index mark the unit must be discarded. If the pinion nut alignment index mark falls short of the pinion shaft alignment index mark the unit will possibly generate an Noise, Vibration, or Harshness (NVH) concern."

Knowing this I would have just bought a billet case and said screw it with these housings. However I don't think this will be an issue, we shall see.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,815
Calling in the big dogs @Hatermkr do you have any torque values for the pinion flange nut?



drag racer

1000 Posts Club
Founding Member
Premium Account
Member ID
#1047
Messages
1,335
Reactions
3,410
Likes
162
City
PEORIA
State
AZ
Country
United States
Vehicle
'16 Challenger HC, '19 Durango SRT, '22 Charger SP
Yea, I don't have a feel for this ZF design since I have never seen a big ass ball bearing pinion design like that until now - all US stuff I know of has tapered roller bearings as you know. I for one sure appreciate you sharing your journey into the unknown with us - I bet a lot of us are taking notes :sneaky:



Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,787
Reactions
5,610
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Yeah wonder what the point of it being engineered that way is



Last edited:

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,787
Reactions
5,610
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
So I did find this documentation on the pinion flange removal and installation to repair the seal. This helps me with re-assembling that, however I didn't mark any orientation as I was cleaning out metal so that was more of a priority. I wonder if imbalance will occur. However if you install this into a billet housing there's no way to keep track of that so, by reasoning maybe its a herring???

View attachment 115822
this is for re-assembly
View attachment 115823
My mind boggles at this:
"If the pinion nut alignment index mark exceeds the pinion shaft alignment index mark the unit must be discarded. If the pinion nut alignment index mark falls short of the pinion shaft alignment index mark the unit will possibly generate an Noise, Vibration, or Harshness (NVH) concern."

Knowing this I would have just bought a billet case and said screw it with these housings. However I don't think this will be an issue, we shall see.
so let me get this straight. They’re marked from the factory (maybe), and if you can’t see the mark on the pinion flange and the nut, you’re supposed to make your own index mark before disassembly to mimic factory “torque”. Is there no set torque spec for these??? Blows my mind too. I guess that’s how they get around telling you the torque specs? Then again they also tell you to index the driveshaft before you take it out I haven’t done that and I’m fine, maybe I get lucky but that doesn’t have anything to do with torque indication like this index mark would



GNBRETT

1000 Posts Club
Member ID
#9039
Messages
1,235
Reactions
1,803
Likes
162
City
Kingsport
State
TN
Country
United States
Vehicle
Trackhawk, RS3 Swapped Golf R, Turbo Stang, Golf R
Great freaking info thanx of posting!



oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
699
Reactions
1,780
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
Calling in the big dogs @Hatermkr do you have any torque values for the pinion flange nut?
there is no torque for the nut, you tighten the nut till you achieve bearing pre load. tighten in small amounts till achieved. do you have the spec for pre load cause I couldn`t find it anywhere but I had no reason to take my flange off when I did my wave track. brgs. felt smooth with no end play.
